MANUFACTERRA

MODEL

Category
Architectural models
Materials
Cardboard, wood, clay
Dimensions
Diverse
Scale
1:2000, 1:200, 1:20



MAQUETTE 200



Category: Model. Materials: Cardboard. Dimensions: 120x120x70 cm. Scale: 1:200. The model is made entirely of plywood and laser cut. Some structural elements are made of beech wood strips. Number of hours worked: 140 hours.

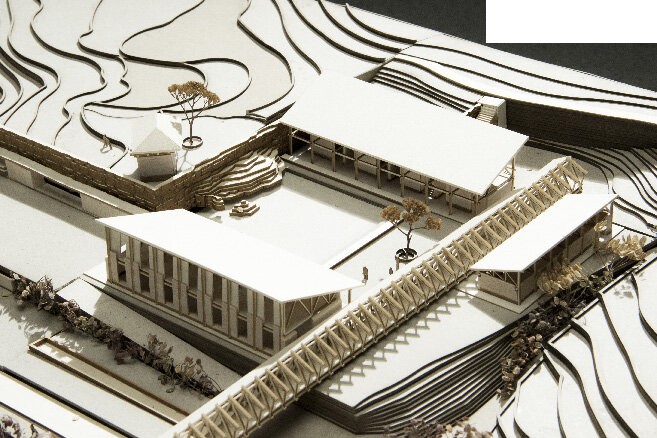

Manufacterra site model, aerial view



Category: Model. Materials: MDF, balsa. Dimensions: 90x90x60 cm. Scale: 1:2000. The base of the model is made of 3mm MDF, and the frames are made of balsa wood. Cut with a laser cutter, zoning done with watercolor. Number of hours worked: 50 hours.

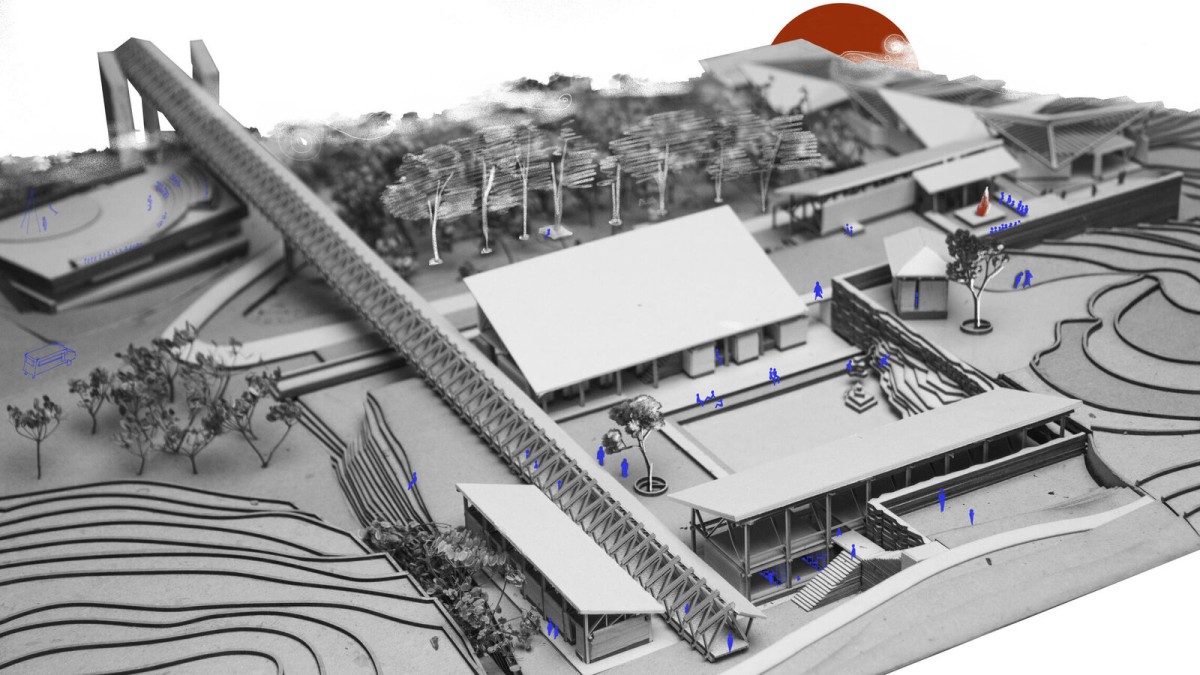

Maquette 2000, watercolor-zoned rendering

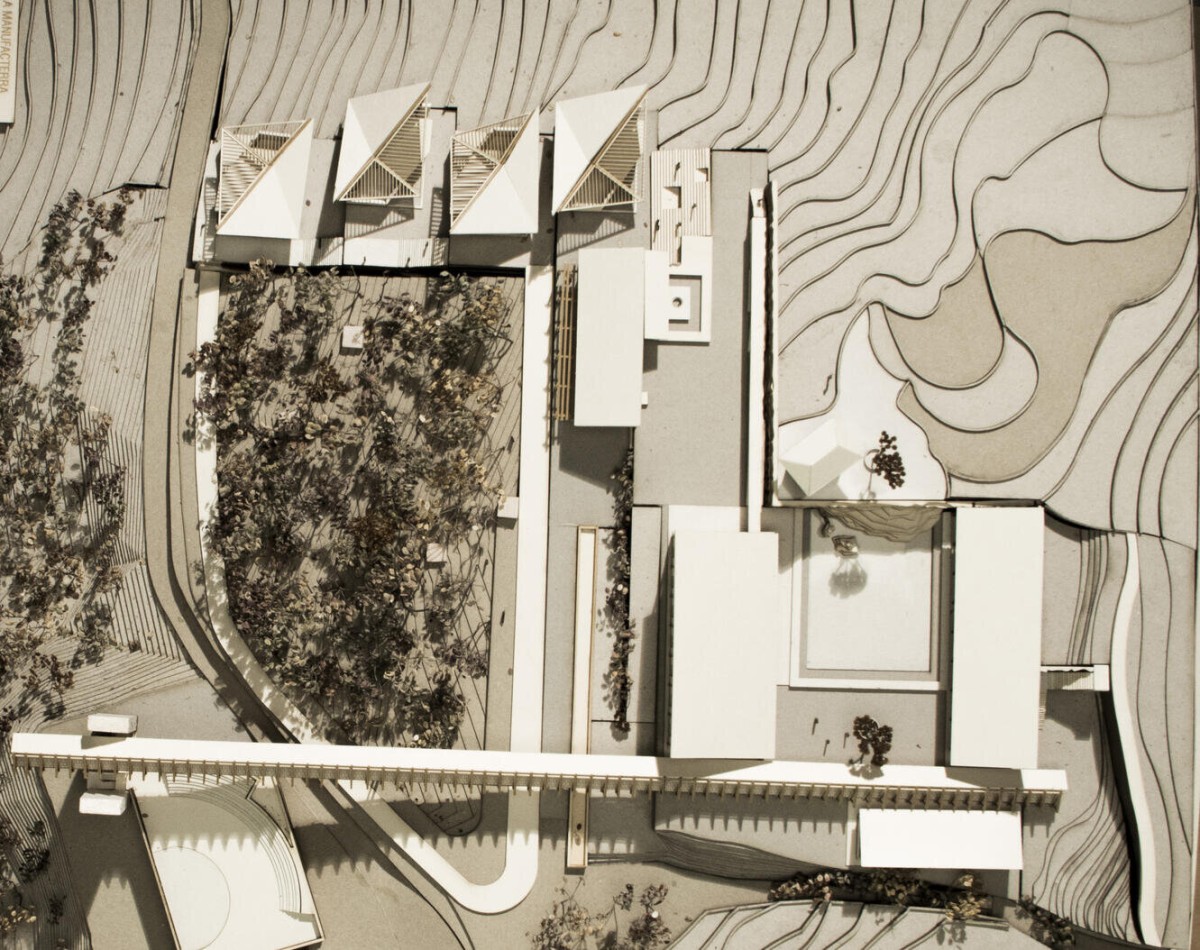

Maquette 200, aerial view of the site model

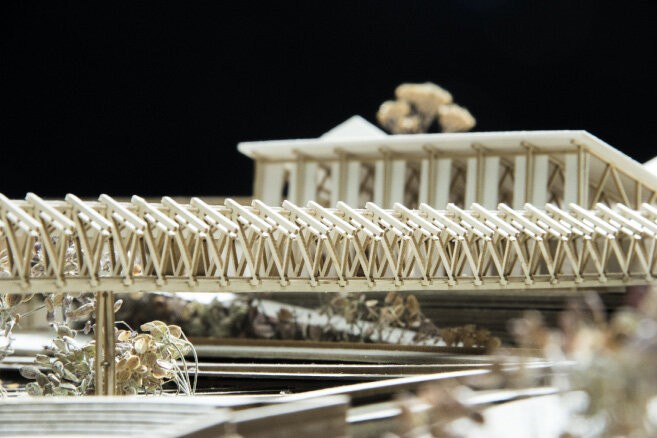

Maquette 200, footbridge detail



The Bridge


Category: Model. Materials: Beech, ropes, clay, granite. Dimensions: 60x30x23 cm. Scale: 1:20. The model is entirely handmade using beech wood sticks. Lashing knots are used to reinforce the structure of the bridge. Number of work hours: 100 hours.

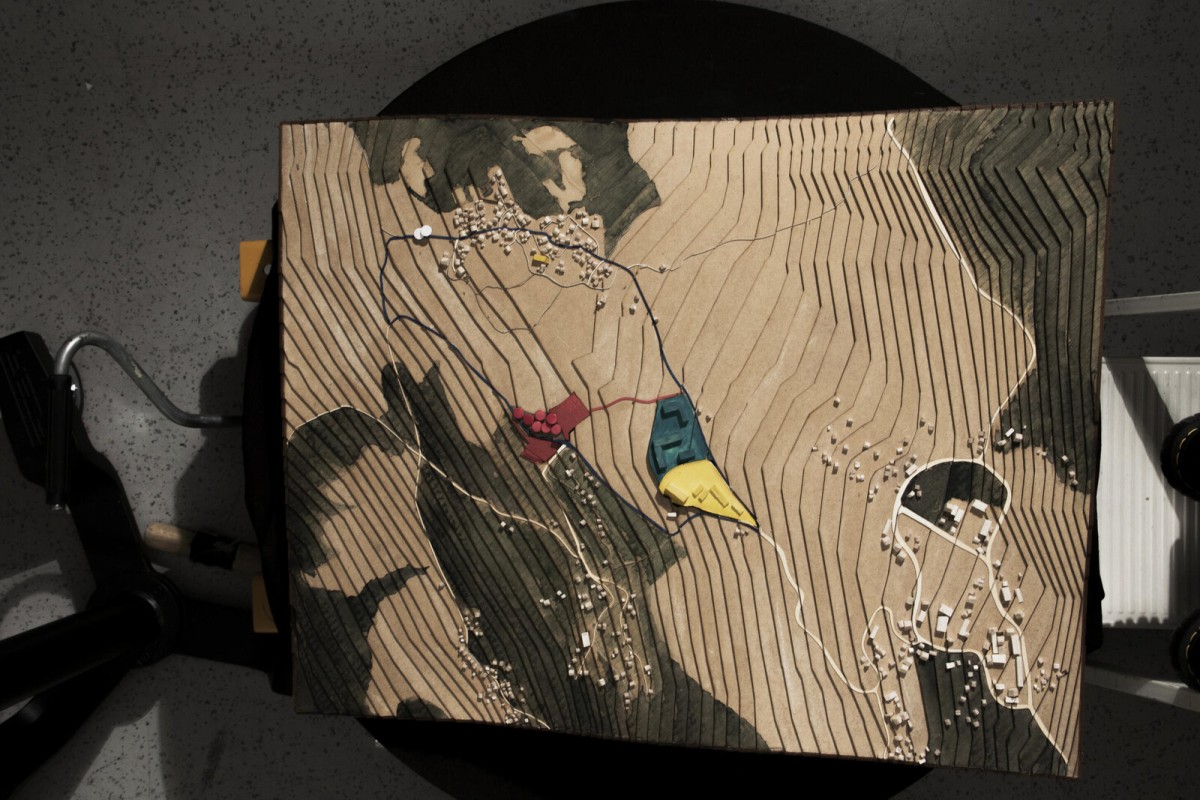

Maquette 20, colour-zoned top-down plan

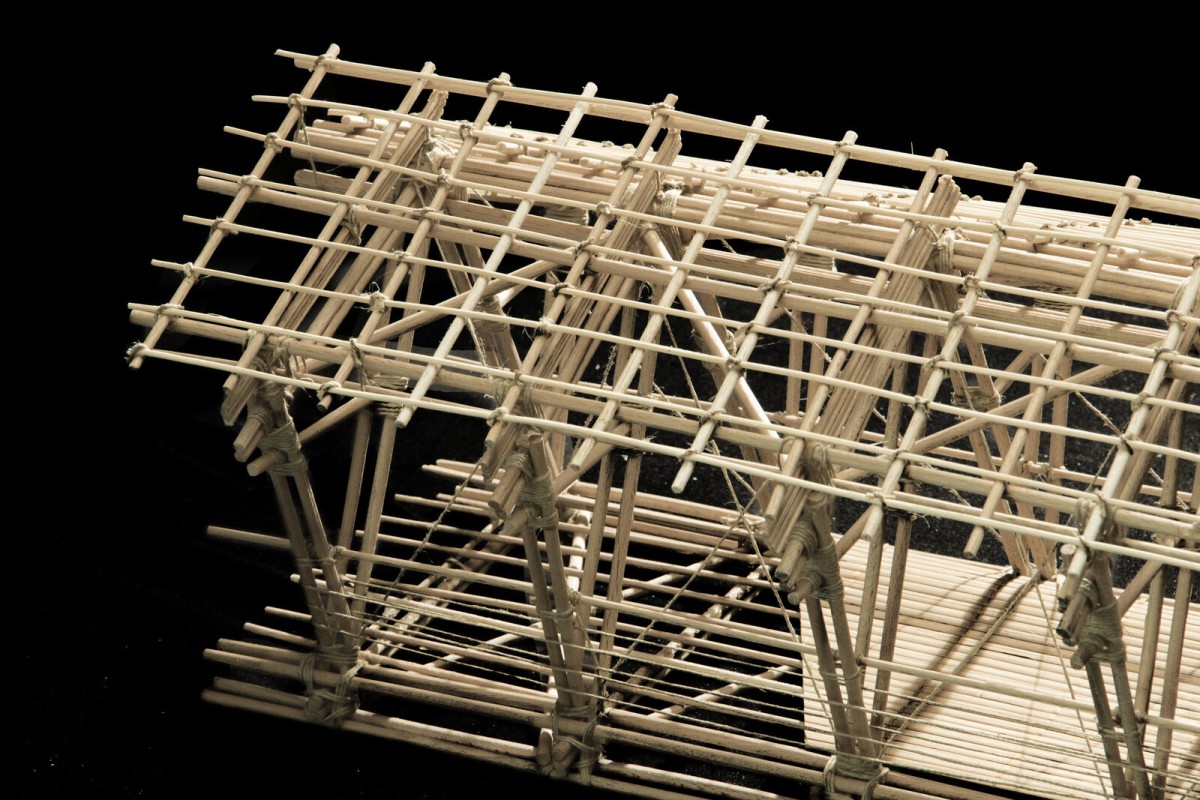

Maquette 20 - Pont, lashed beech-stick bridge structure

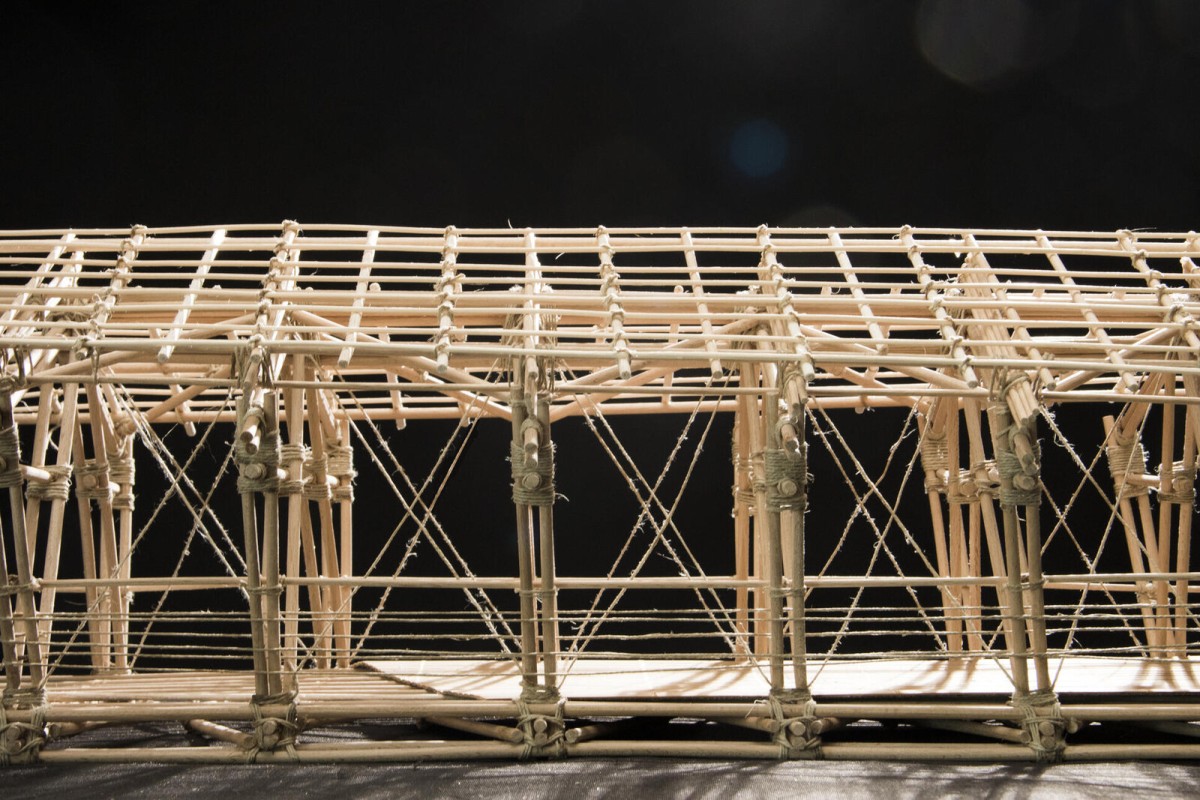

Maquette 20 - Pont, close-up of the lashed joints



Totem


The base of the model is made of granite. The rammed earth is created from clay. The wall structure is made from beech wood sticks. Number of work hours: 50 hours.

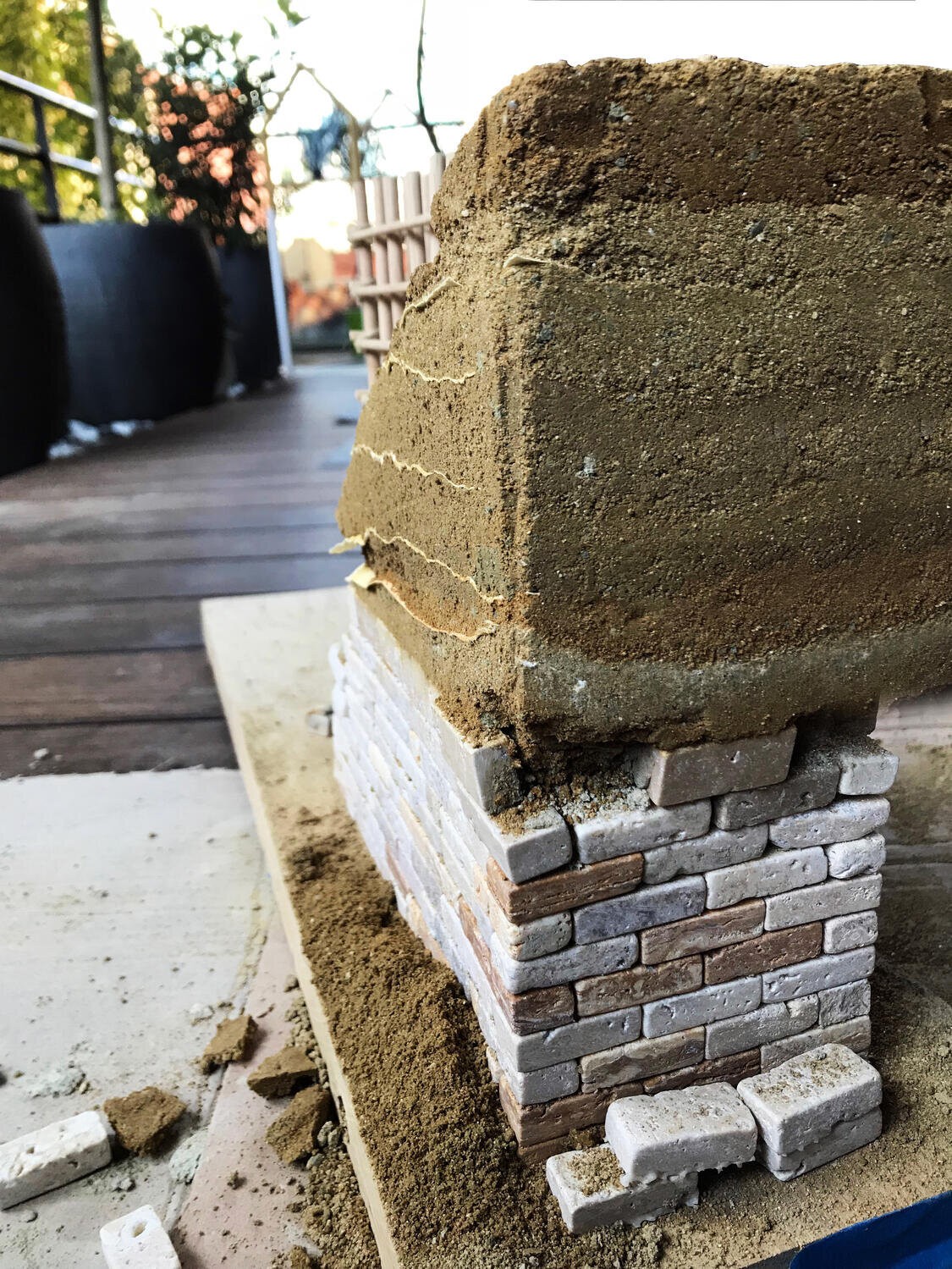

Maquette 20 - Totem, granite base and rammed earth

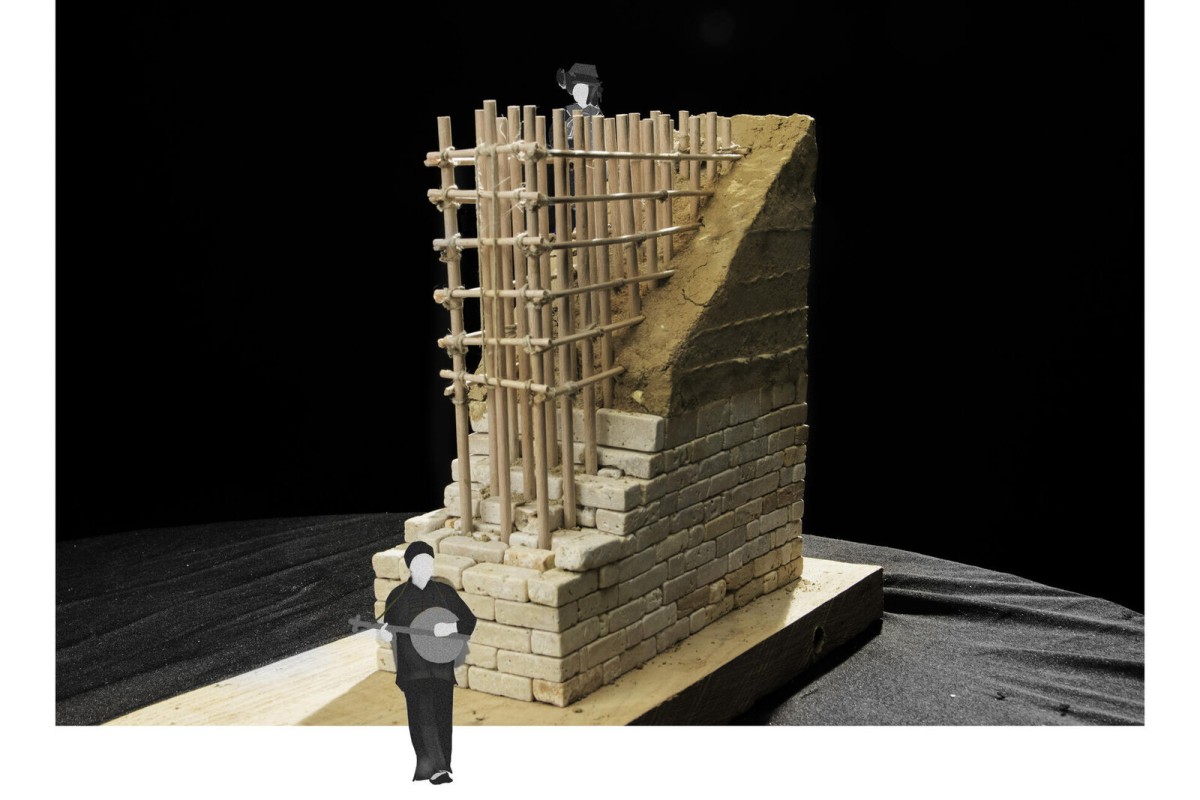

Maquette 20 - Totem, stone base with figure for scale
